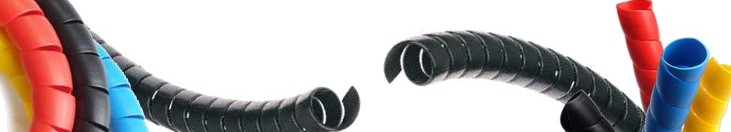

Spiral Guard
Material High Density Polyethylene
| Item Code | Nom OD(inch) | Nom OD(mm) | WT(mm) | Pitch(mm) | Std Length(mm) |
| 12 | 12 | 10 | 1.5 | 9.0 | 50 |
| 16 | 16 | 13 | 1.6 | 12.0 | 20/50 |
| 20 | 20 | 17 | 1.9 | 16.0 | 20/50 |
| 25 | 25 | 21 | 2.0 | 20.0 | 20/50 |
| 32 | 32 | 27 | 2.3 | 22.0 | 20/50 |
| 40 | 40 | 35 | 2.7 | 24.0 | 20/50 |
| 50 | 50 | 45 | 3.0 | 30.0 | 20 |
| 63 | 63 | 58 | 3.5 | 37.0 | 20 |
| 75 | 75 | 69 | 3.8 | 42.0 | 20 |
| 90 | 90 | 82 | 5.0 | 45.0 | 20 |
| 110 | 110 | 100 | 5.5 | 50.0 | 12 |
| 125 | 125 | 116 | 6.0 | 55.0 | 12 |
