Composite Hose

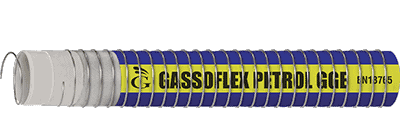

| Application: | Petrol |
| Model No. | EN 13765:2010 |
| Temperature: | −30°C TO +100°C |
| Model No. | Diameter (inch) | Working Pressure | Inner Core | Outer Core | Inner Lining |
| GGE | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
Galvanized Steel (G) | Galvanized Steel (G) | Polypropylene (E) |
| AAE | 2 – 4 | 10 bar (145psi) | Aluminum (A) | Aluminum (A) | Polypropylene (E) |
| AGE | 2 – 4 | 10 bar (145psi) | Aluminum (A) | Galvanized Steel (G) | Polypropylene (E) |
| AGP BIODIESEL | 1-1/2 – 4 | 10 bar (145psi) | Aluminum (A) | Galvanized Steel (G) | Polyamide (P) |
| SGP BIODIESEL | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
Stainless Steel 316L (S) | Galvanized Steel (G) | Polyamide (P) |
| LOADING ARMS | 2 – 4 | 14 bar (203psi) | Galvanized Steel (G) | Galvanized Steel (G) | Polypropylene (E) |
| VR RECOVERY | 2 – 4 | 7 bar (105psi) | Galvanized Steel (G) | Galvanized Steel (G) | Polypropylene PP (E) |
| ROOF DRAIN | 3 – 10 | 14 bar (203psi) | Stainless Steel 316L (S) | Stainless Steel 316L (S) | Polypropylene (E) |
| AVIATION | 2 – 4 | 14 bar (203psi) | Aluminum (A) | Galvanized Steel (G) | Polyamide (P) |

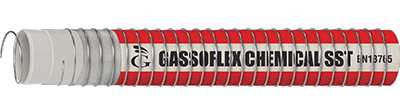

| Application: | Chemical |
| Model No. | EN 13765:2010 |
| Temperature: | −30°C TO +100°C |
| Model No. | Diameter (inch) | Working Pressure | Inner Core | Outer Core | Inner Lining |
| EGE | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
PP Coated Steel (E) | Galvanized Steel (G) | Polypropylene PP (E) |
| SSE | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
Stainless Steel 316L (S) | Stainless Steel 316L (S) | Polipropylene (E) |
| SST | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
Stainless Steel 316L (S) | Stainless Steel 316L (S) | PTFE (T) |
| SGT | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
Stainless Steel 316L (S) | Galvanized Steel (G) | PTFE (T) |
| SGE | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
Stainless Steel 316L (S) | Galvanized Steel (G) | Polypropylene PP (E) |
| ESE | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
PP Coated Steel (E) | Stainless Steel 316L (S) | Polypropylene PP (E) |
| TST | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
PVDF Coated Steel (T) | Stainless Steel 316L (S) | PTFE (T) |
| EEE | 1 – 10 | 14 bar (203psi) 10 bar (145psi) |
PP Coated Steel (E) | PP Coated Steel (E) | Polypropylene PP (E) |
| HOSE TOWER | 6 – 10 | 14 bar (203psi) 21 bar (315psi) |
SS / CS / PP Coated Steel | SS / CS / PP Coated Steel | PP / PTFE |
| Application: | Cryogenic |
| Model No. | EN 13766:2010 |
| Temperature: | −50°C TO +50°C (LPG) −196°C TO +50°C (LNG) |
| Model No. | Diameter (inch) | Working Pressure | Inner Core | Outer Core | Inner Lining |
| LPG | 1 – 10 | 25 bar (362psi) 21 bar (304psi) |
Stainless Steel 316L (S) | Stainless Steel 316L (S) | Polyamide / BPPO |
| LNG | 1 – 10 | 21 bar (315psi) 14 bar (203psi) 10 bar (152psi) 5 bar (152psi) |
Stainless Steel 316L (S) | Stainless Steel 316L (S) | Polyamide / Polyester |

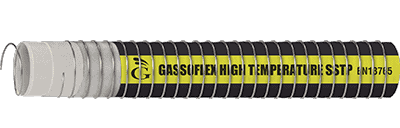

| Application: | Chemical |
| Model No. | EN 13765:2010 |
| Temperature: | −30°C TO +240°C |
| Model No. | Diameter (inch) | Working Pressure | Inner Core | Outer Core | Inner Lining |
| SSTP | 1 – 10 | 14 bar (203psi) | Stainless Steel 316L (S) | Stainless Steel 316L (S) | Polyamide / PTFE / Fiber Glass (TP) |
| SGTP | 1 – 10 | 14 bar (203psi) | Stainless Steel 316L (S) | Galvanized Steel (G) | Polyamide / PTFE / Fiber Glass (TP) |
| GGTP | 1 – 10 | 14 bar (203psi) | Galvanized Steel (G) | Galvanized Steel (G)) | Polyamide / PTFE / Fiber Glass (TP) |
